Health & Safety Risk Register & Signs Using Revit
Abdul • 26 January 2021

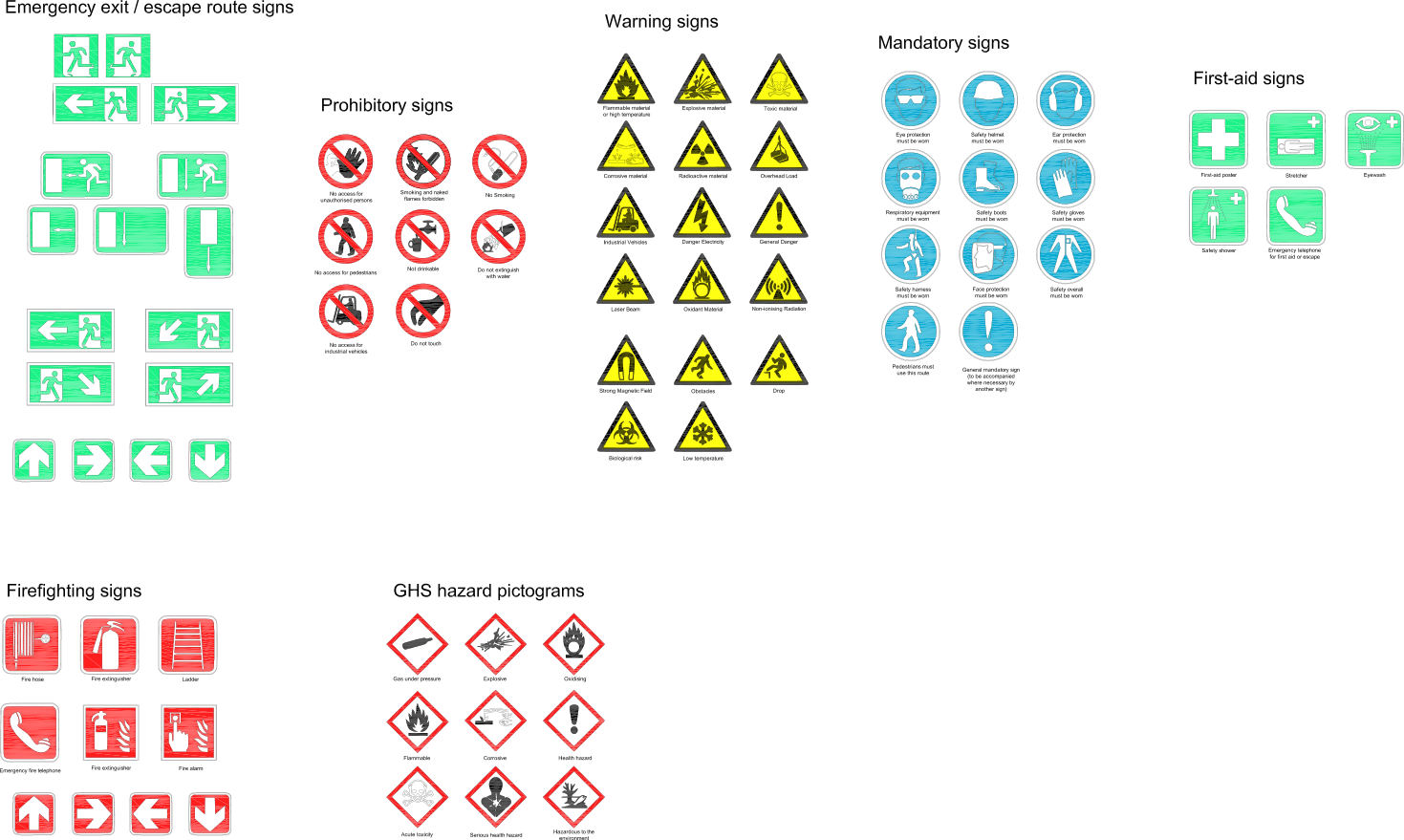

Health & Safety signs - revit template and cad blocks
As part of a project we were assigned - we were asked to build a risk assessment template in revit. We think this will be a good tool for others looking to create a risk assessment in revit & so we have made it available as a free download.
Each category of signage (Emergency / Warning / Mandatory etc.) is built as a family that consists of several types of sub-families within it. Risk assessment is created using Note block function in revit. In the template 'Warning signs' shown as yellow triangles is creating the risk register, however any other category can easily be made to create another register if needed.
The note block lists every instance of warning you place in the model & if you remove a warning sign, the associated risk is removed from the schedule. The signs are based on HSE guidance https://www.hse.gov.uk/pubns/books/l64.htm
Also available to download below is the .dwg version of these signs.
Revit signs look slightly different to .dwg signs as we had to optimise them to retain the auto scale ability. It will be interesting to know how others tackle creating risk assessment registers in Revit and BIM systems so please feel free to comment. One of the systems I have come across is Bimsafe https://www.bimsafe.co.uk/ which looks interesting and might be a good tool.
The revit template and cad file can be downloaded here (email required)
